Integrated syringe closures made of high-temperature polycarbonate

Copied to clipboard
Covestro: premiere at Pharmapack 2019 on February 6 and 7 in Paris
Integrated syringe closures

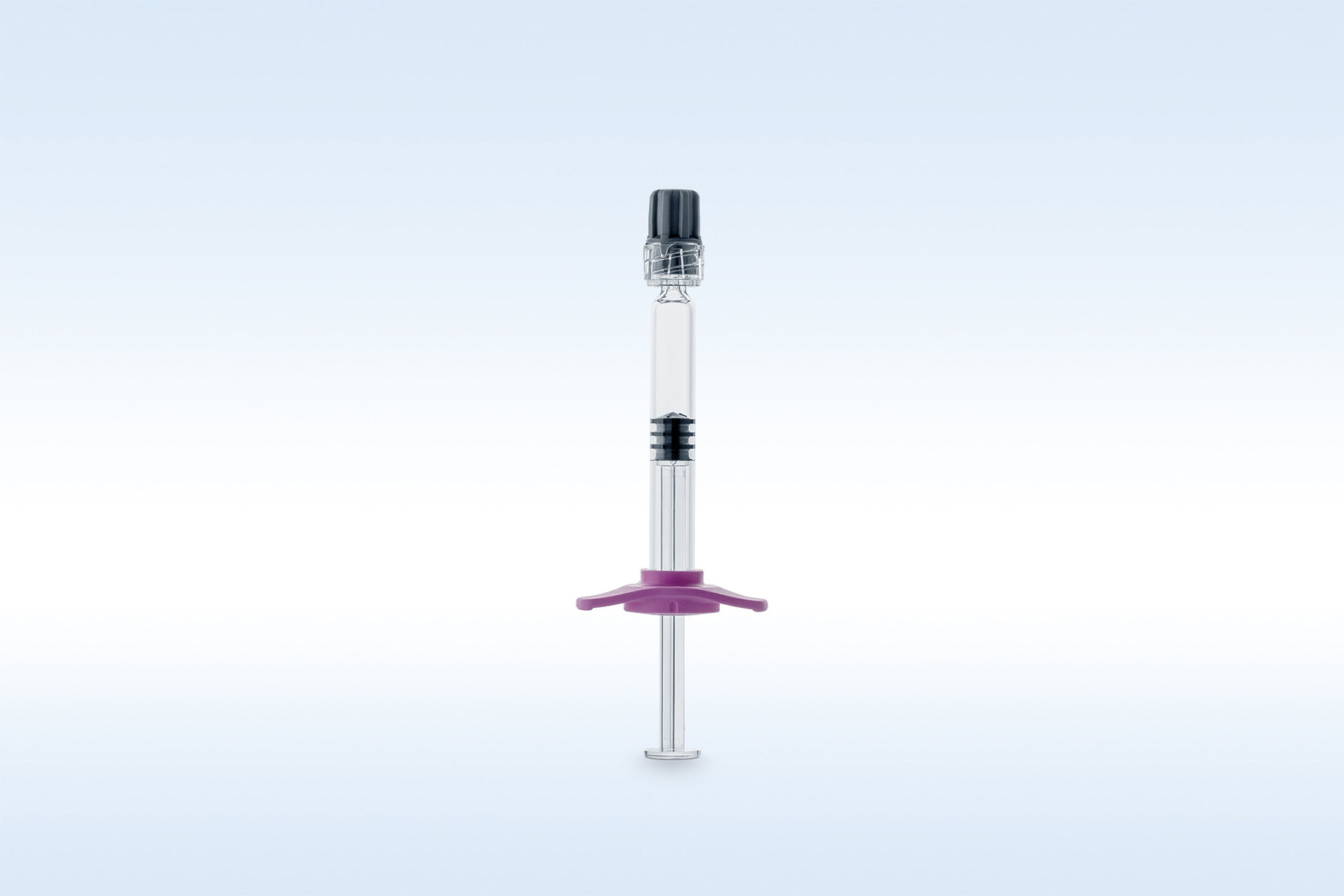

The adapter of Gerresheimer´s Gx TELC syringes for screwing in the needle and the syringe cap (in the picture top) is made from high-temperature Apec® 1745 plastic from Covestro. It is temperature resistant and can be sterilized using conventional methods. Picture source: Gerresheimer Bünde GmbH

Hot steam sterilizable, impact resistant and dimensionally stable

Simplified manufacturing process using 2-component injection molding technology

Comprehensive customer service for component development

Pittsburgh, January 31, 2019 — The market for prefilled syringes is currently experiencing strong growth – for example, in systems for the treatment of chronic diseases such as rheumatism. The design of such injection systems is primarily concerned with ease of use to ensure that the patient is reliably supplied with the intended dose of the active substance. The adapter for screwing in the needle and the syringe cap plays a key role.

With Gx TELC (Tamper Evident Luerlock Closure), Gerresheimer AG is offering an integrated solution which combines both functions in a single component and also enables tamper-evident protection of the active ingredient. The medical technology specialist based in Düsseldorf chose Apec® 1745 high heat polycarbonate from Covestro as the material for the adapter. For the first time, the company is participating in the Pharmapack 2019 trade fair on February 6 and 7 in Paris, and will present this development at its booth number C94.

Resistant to high temperatures and impacts

The transparent high-temperature polycarbonate is characterized by its high heat resistance and can be sterilized using conventional methods such as gamma rays or ethylene oxide. "In addition, it is dimensionally stable and dimensionally accurate at high temperatures, so that the entire component does not warp after hot steam sterilization at 143 °C, for example. As a result, the closure for opening the syringe remains defined in every situation and enables an easy screwing in of the tube," explains Dr. Wenzel Novak, global senior director business development at Gerresheimer. Another advantage of the plastic is its high impact strength. It protects the adapter from damage, for example in the event of impacts.

Two functions in one component

The system comprising an adapter and a closure is produced by two-component injection molding as a hard-soft combination. First the adapter is molded from copolycarbonate, then the cap is injection-molded from a thermoplastic elastomer. "The hard thermoplastic and the soft elastomer parts bind strongly to each other. There is no adhesive required, so there are no chemical reactions that could cause increased torque," explains Dr. Martin Doebler, medical technology specialist at Covestro.

The combination of closure and adapter in one component simplifies the manufacturing process and means greater cost-effectiveness. The person using the syringes also benefits: they only have to mount one connected part on the syringes. Turning the cap to open the syringes releases tabs that spread and prevent the cap from closing again. This means that the syringe cannot be opened and closed unnoticed. This tamper-evident feature prevents misuse of the systems and counterfeit products with regard to medicines.

Support in material selection, application technology and processes

Covestro provided Gerresheimer with extensive support during the development of the complex component – including recommendations on the correct choice of material and technical application advice. In addition, experts from the polymer manufacturer were on hand to provide advice and assistance in the design of the manufacturing process.

Apec® 1745 is no "stranger" in medical technology. “The biocompatible material meets the requirements of the ISO 10993-1 standard for the biological evaluation of medical devices,” says Barbara Giershausen, key account manager for Gerresheimer. "It is used, for example, to manufacture films for special filter housings and respiratory masks.”
